- 5KW SOLAR ENERGY SYSTEM FULL SET
- 5KWH LITHIUM BATTERY+5KW HYBRID INVERTER+SOLAR PANEL+installation tools+MOUNTING STRUCTURE+CONNECTOR
KERNEL PARAMERERS
- Application: Home,Commercial,Industrial,Other
- Battery Type: Lithium Battery/Li-ion Battery
- Inverter Type: Hybrid inverter with MPPT controller
- Controller Type: MPPT
- Mounting Type: Ground Mounting/Roof Mounting
- PV Power: 5KW
- Output Frequency: 50HZ/60HZ
- Certificate: UN38.3,MSDS,UL1973(Cell),IEC62619(Cell)
- Type: Hybrid solar system
- Solar Solution: Customized
- Battery Input Voltage(V): 40-60(EU)
cOMPONENTS AND PARTS

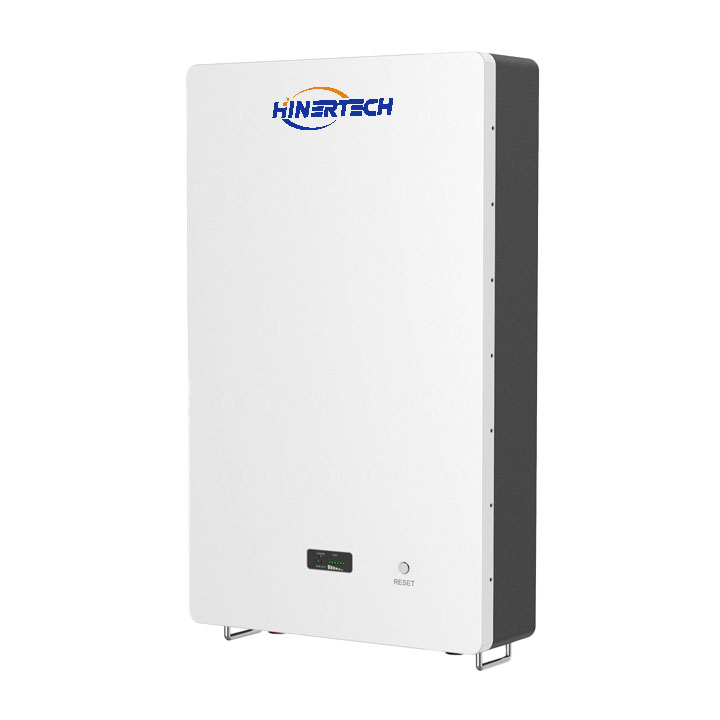

Battery
- Rated Voltage: 51.2V
- Rated Capacity: 100Ah
- Rated Energy: 5.12kWh
- Grade A Cells
- With Bms Inside
- 6000+ Cycle Time
- 10 Years Warranty
Solar inverter
- Rated PV Input Voltage: 370V
- Voltage Range: 125V~500V
- Output Frequency: 50/60 HZ
- Output Range: L1/L2/N(PE) 120/240Vac (split phase), 208Vac (2/3 phase), L/N/PE 220/230Vac (single phase)
- Grid Type: Split phase; 2/3 phase; Single Phase
All Black Solar Panel
- 410W Mono Facial
- Half Cell All Black
- SIZE:1723*113*30MM
- 25 Year Warranty
- MOQ:1 Pallet 31pcs/Pallet
PV System Installation Tools
- Disassemble Tool
- MC3 MC4 Crimper
- Wire Cable Cutter & Stripper
- MC4 Connector Assembly
PV Cable&MC4 Connector
- AC Cable
- DC Switches
- AC Breaker
- AC/DC Combine Box
- PV Cable 4MM2 6MM2
- Rated Current: 30A
- Rated Voltage: 1500VDC
Mounting Structure
- Ground Solar Mounting System
- Residential Roof(Pitched Roof)
- Car Parking Solar Mounting System
- Vertical Wall Solar Mounting System
- Commercial Roof(Flat Roof&Workshop Roof)
- All Aluminum Structure Solar Mounting System
TECHNICAL PARAMETERS
